Product features:

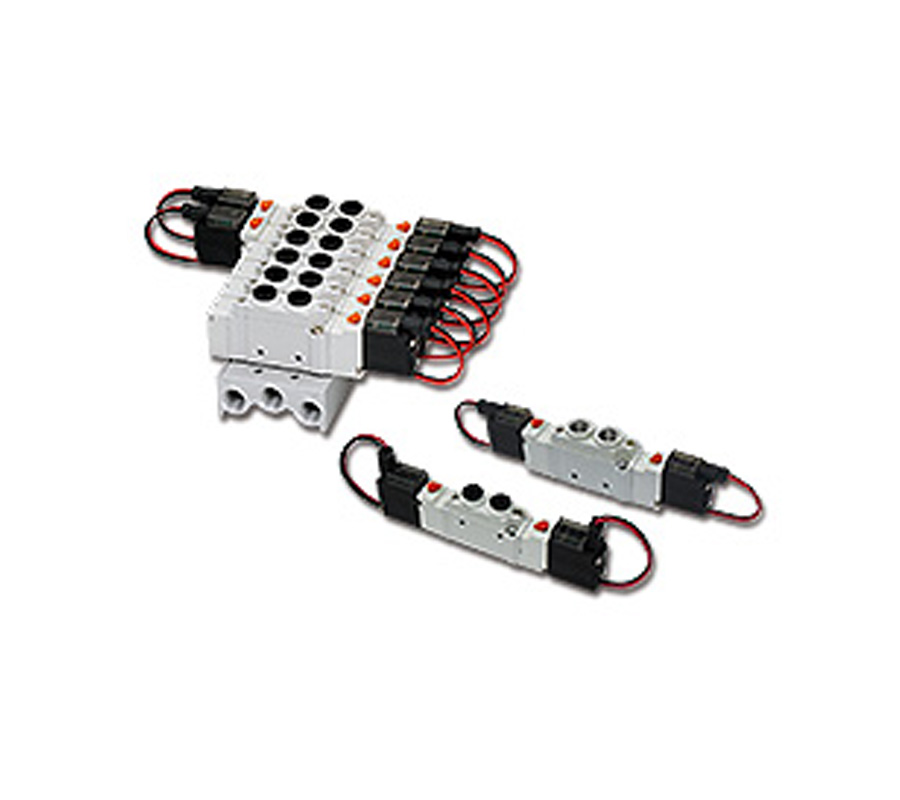

Multiple actuation types available for use with tandem seats:
The valve body is equipped with internal teeth for pipe joints, which can be used to install multiple sets of electromagnetic valves on it in conjunction with a joint seat, allowing centralized intake and exhaust, avoiding the trouble of installing one by one.
Multiple actuation type selection:
Actuation types include five port two position single coil, five port two position double coil, and five port three position double coil, which can be selected according to requirements.
Diversified piping types:
In addition to the standard internal tooth type, there is an additional connector type that can be directly intubated for use.
Detailed specifications:
| type of machine | SM5000 | SM7000 | SM9000 |
| Using fluids | air | ||
| Operating pressure range kgf/c ㎡ (Kpa) |
1.5~7(150~700 |
||
| Operating temperature range ℃ | 0~50 | ||
| Cutting control method | Air guidance | ||
| Number of air ports and positions | Two for five, three for five | ||
| Valve style | Normally closed type | ||
| Effective cross-sectional area m ㎡ (CV) | 9(0.5) | 16.2(0.9) | 30.6(1.7) |
| Manual button | Hand pressure rotary fixation | ||
| Connecting diameter | Rc1/8、?4、?6、?8 | Rc1/8、Rc1/4、Rc3/8、?6、?8、?10、?12 | |
| lubrication |
Free supply mode |
||
